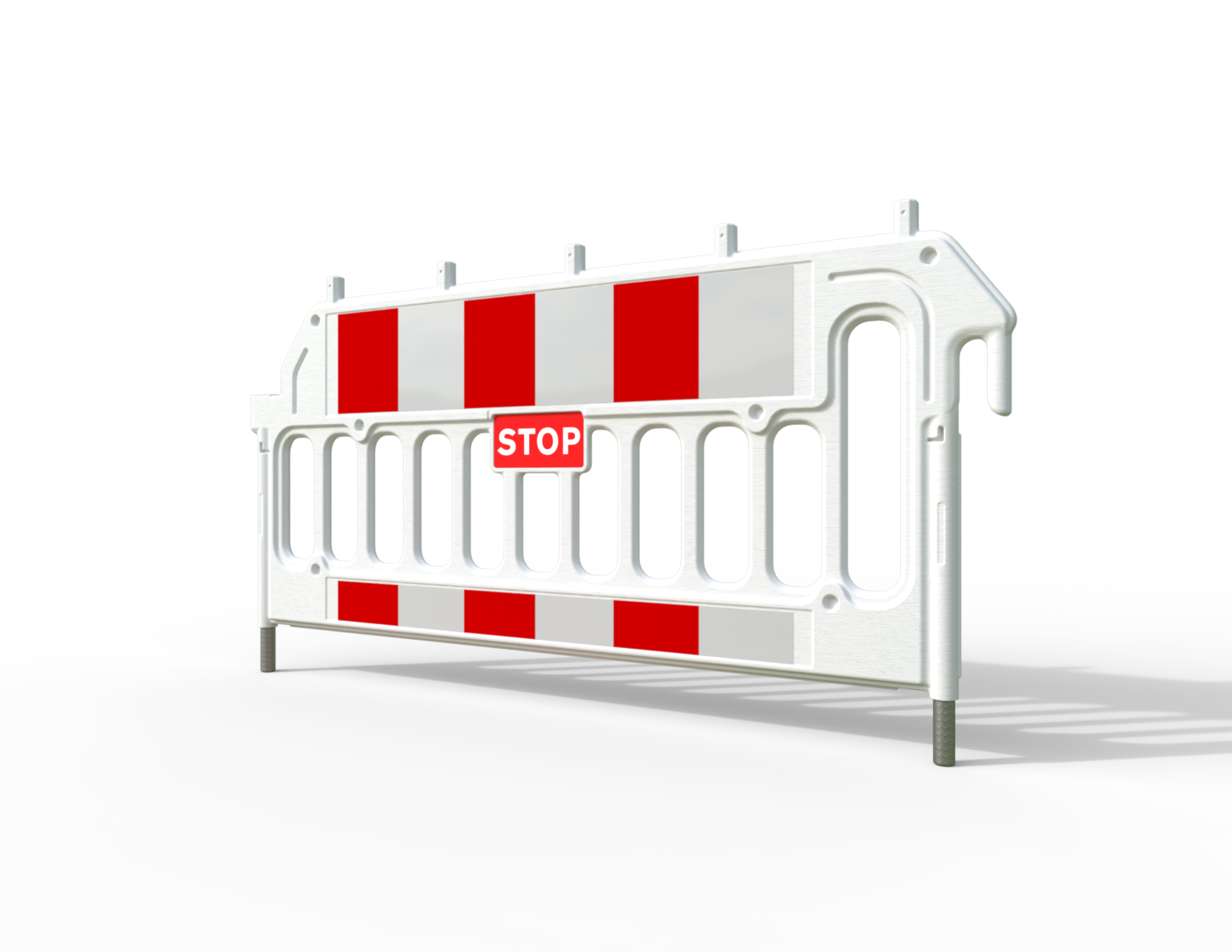

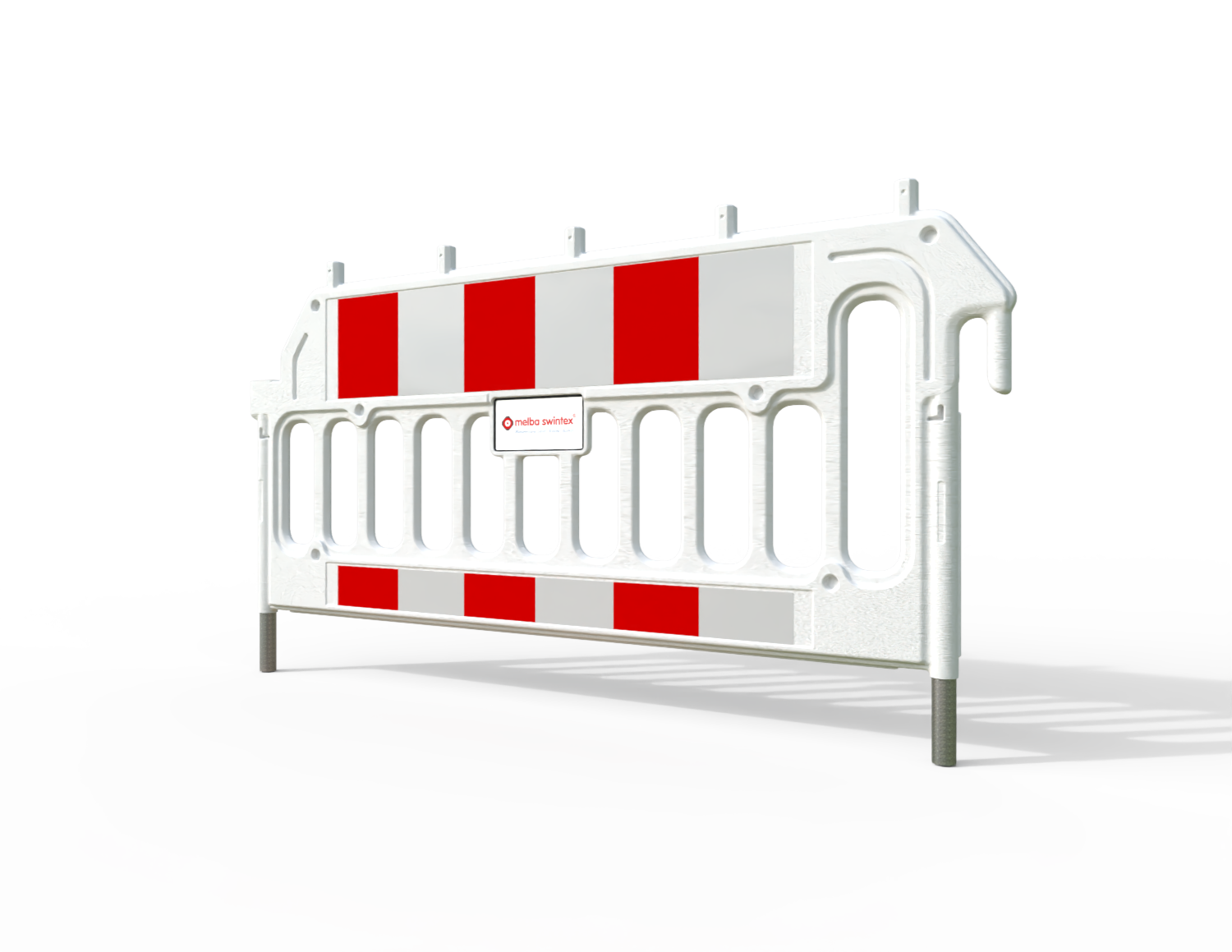

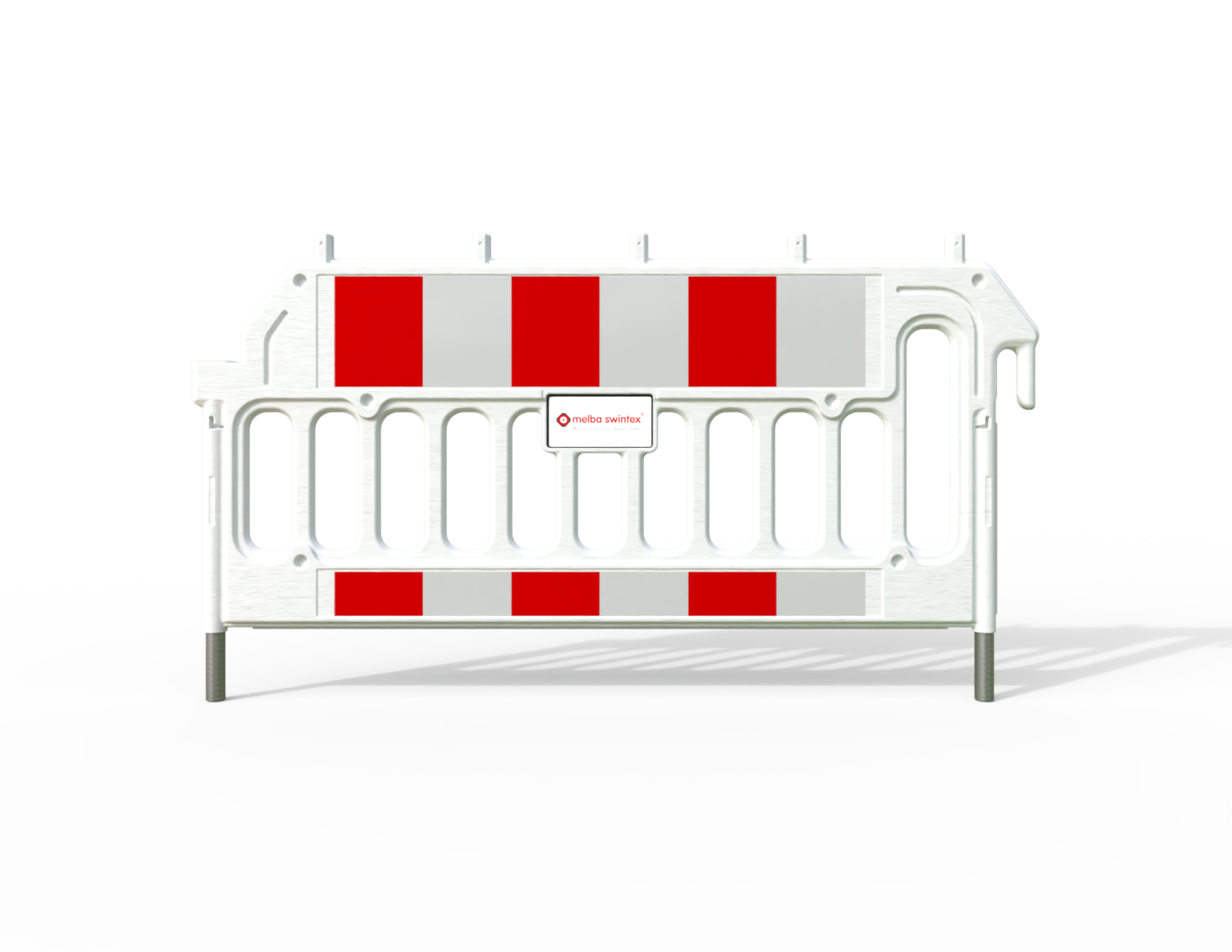

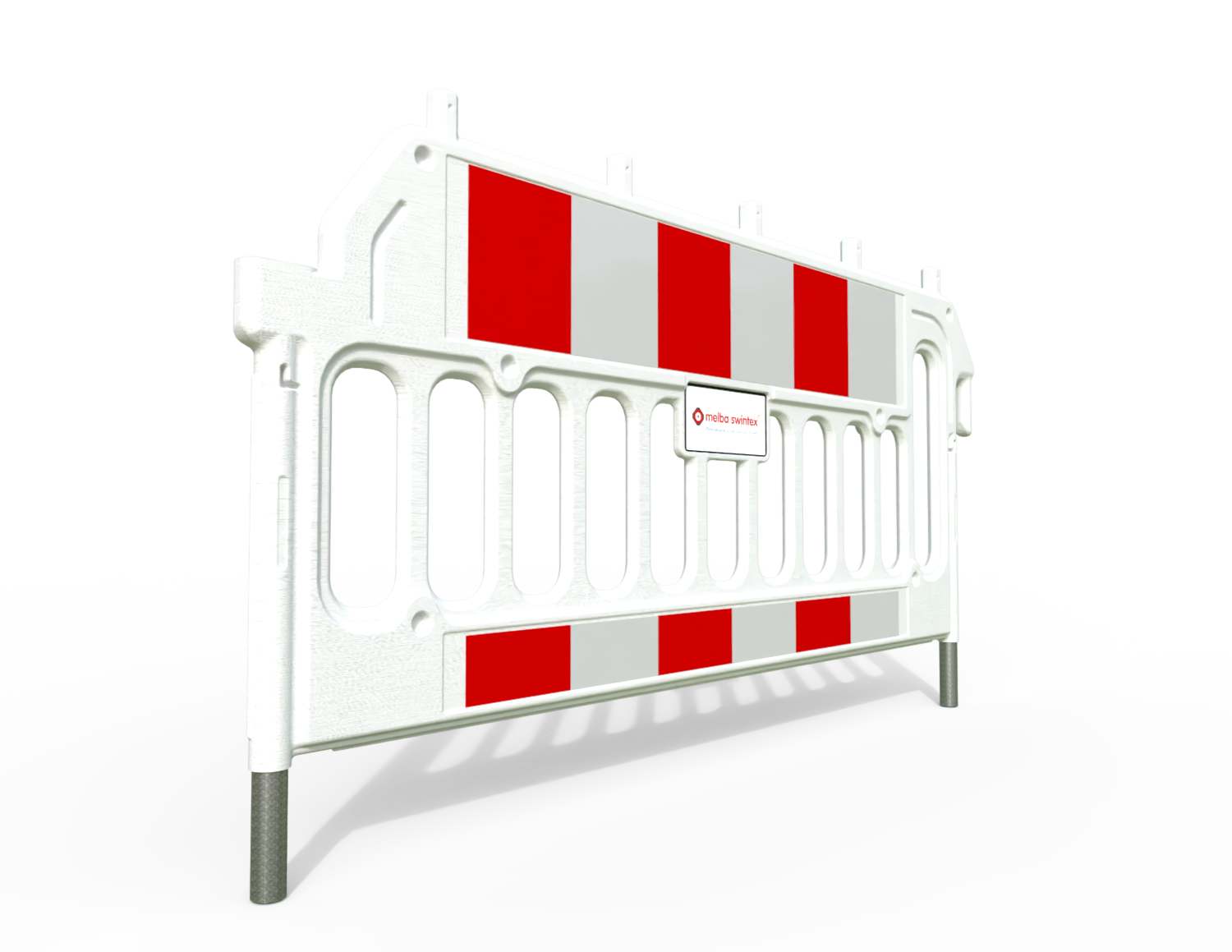

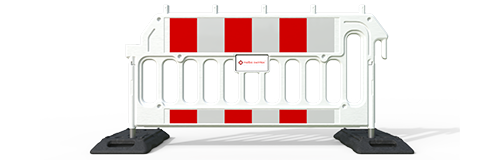

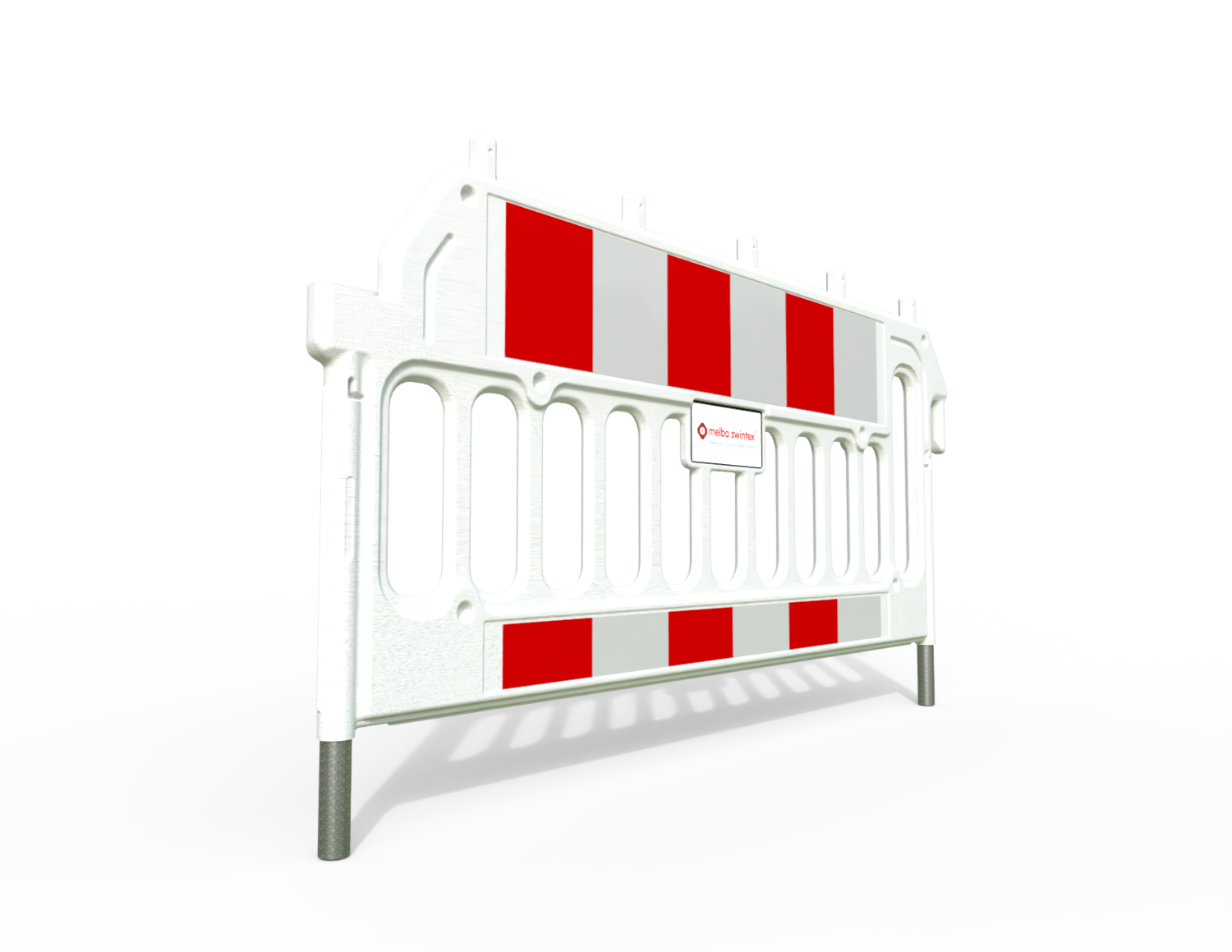

Centurion
The Centurion is a robust pedestrian barrier designed to meet UK & international compliance standards. Featuring a central branding plate offering high resolution identification, it offers both safety and a professional appearance for traffic management and public works.
Features

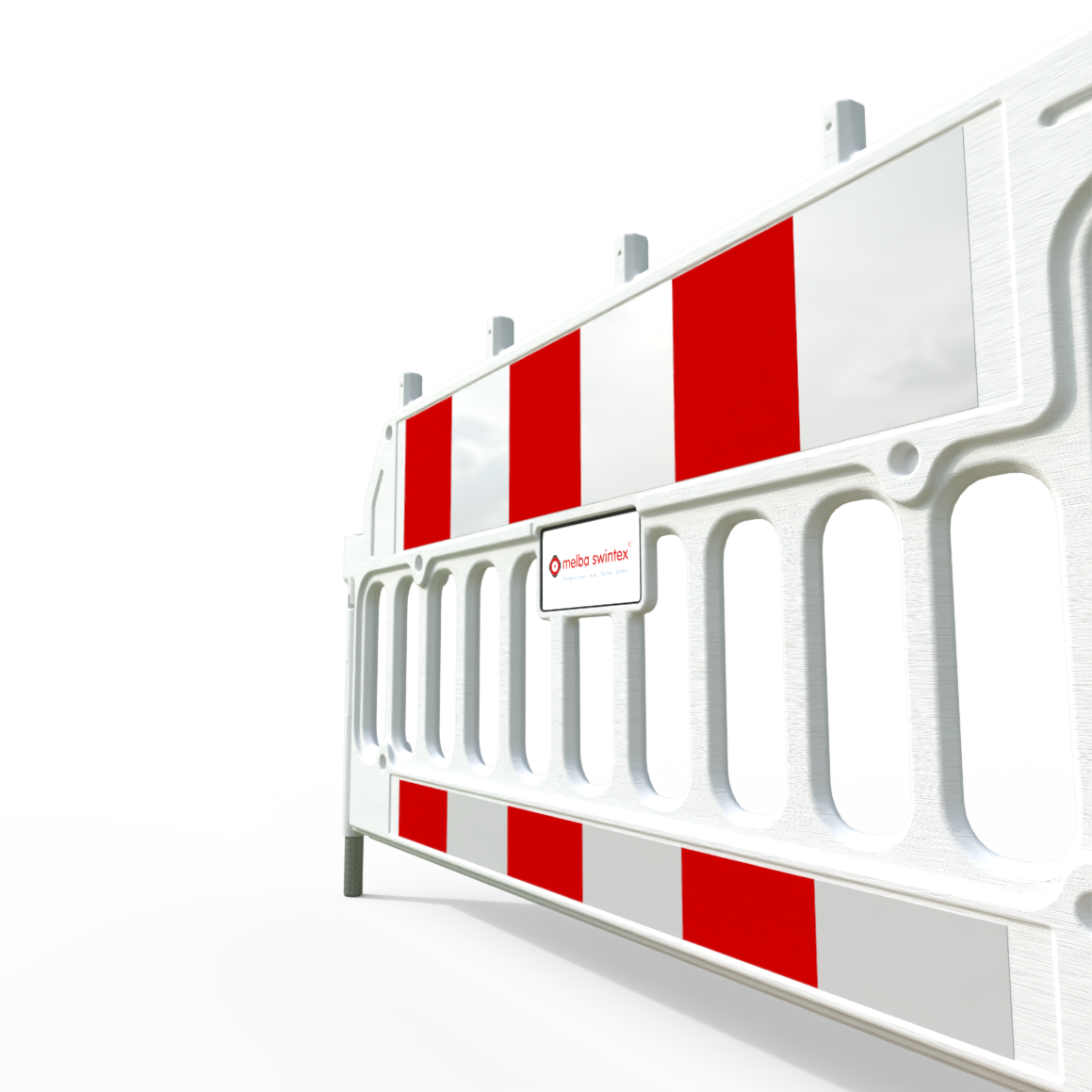

Top posts for flashing beacons.

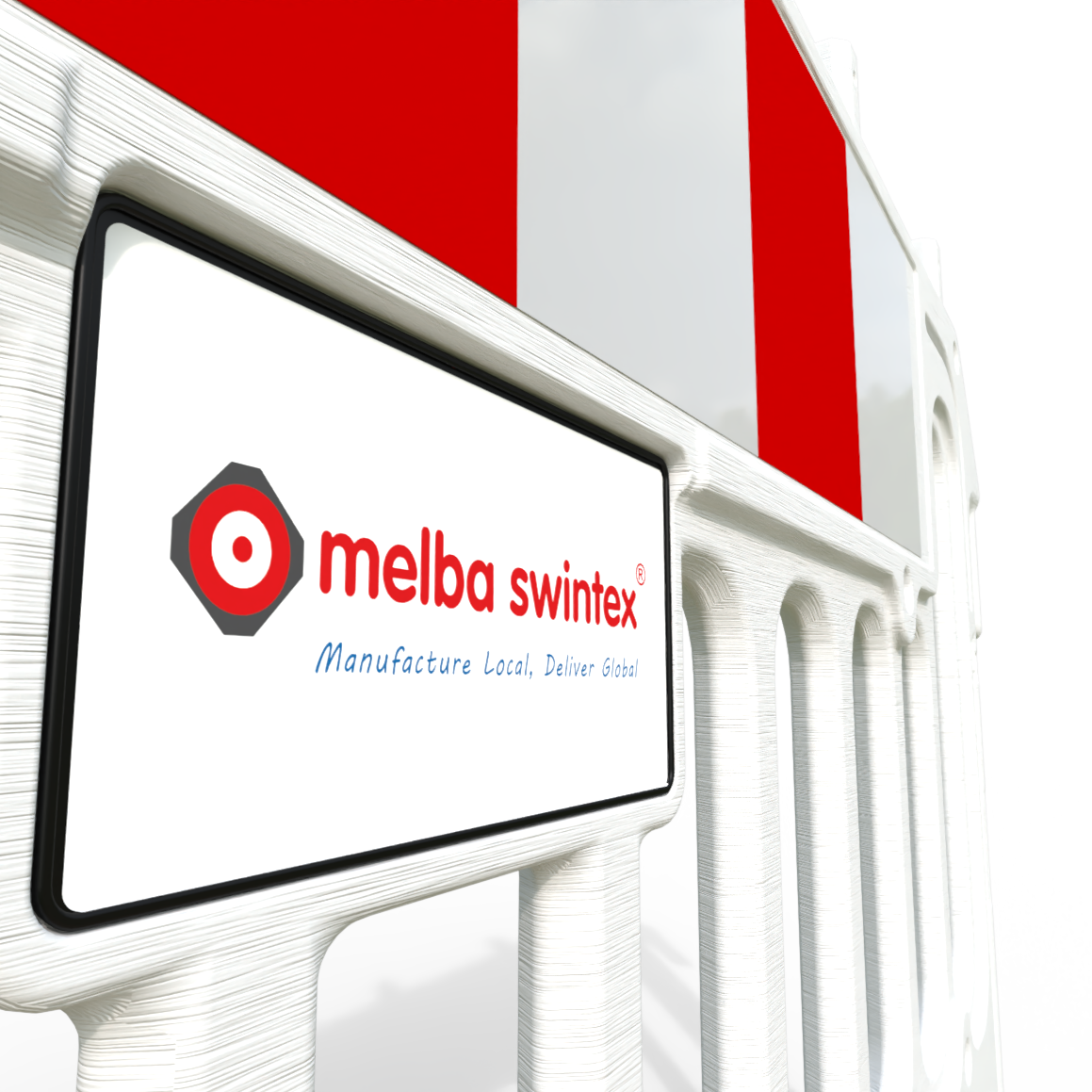

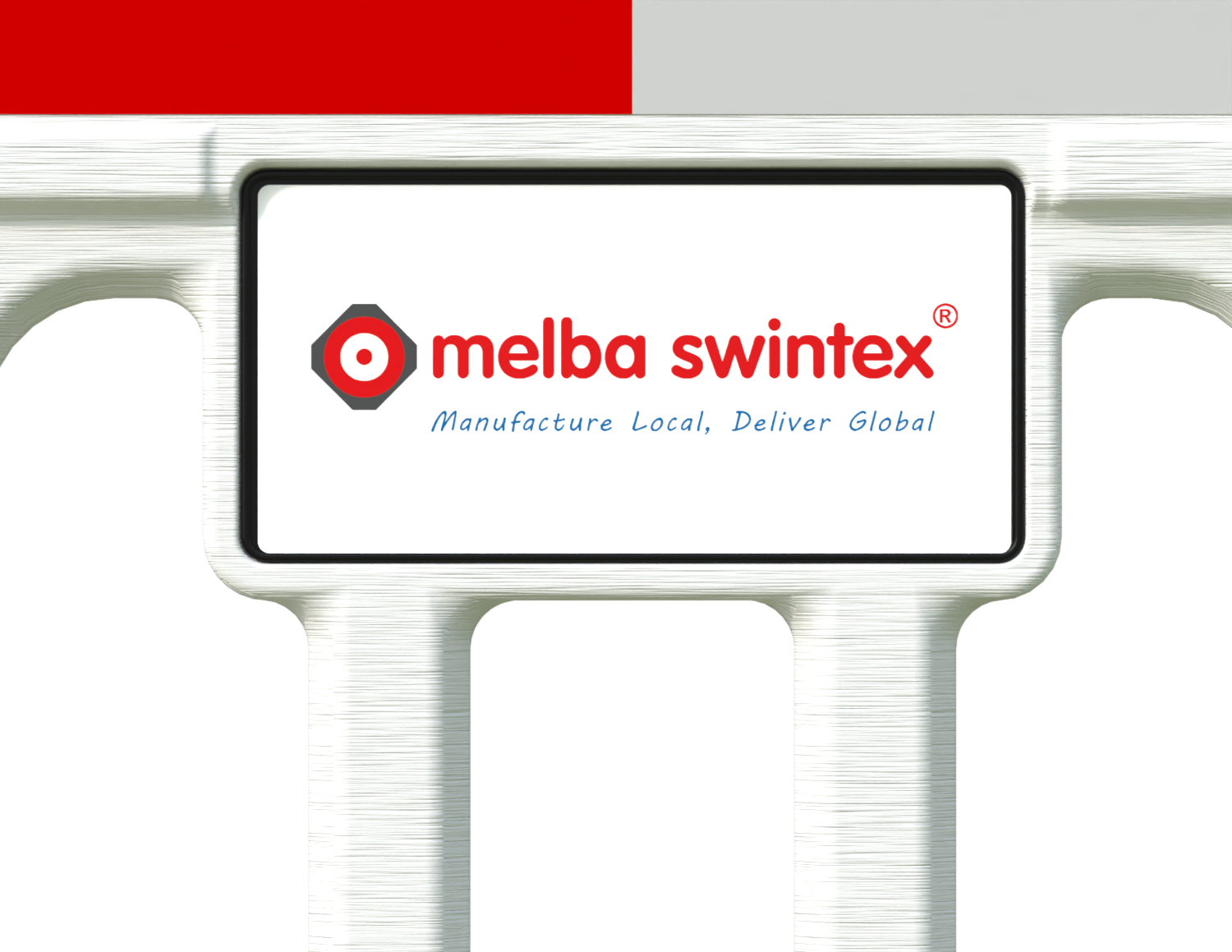

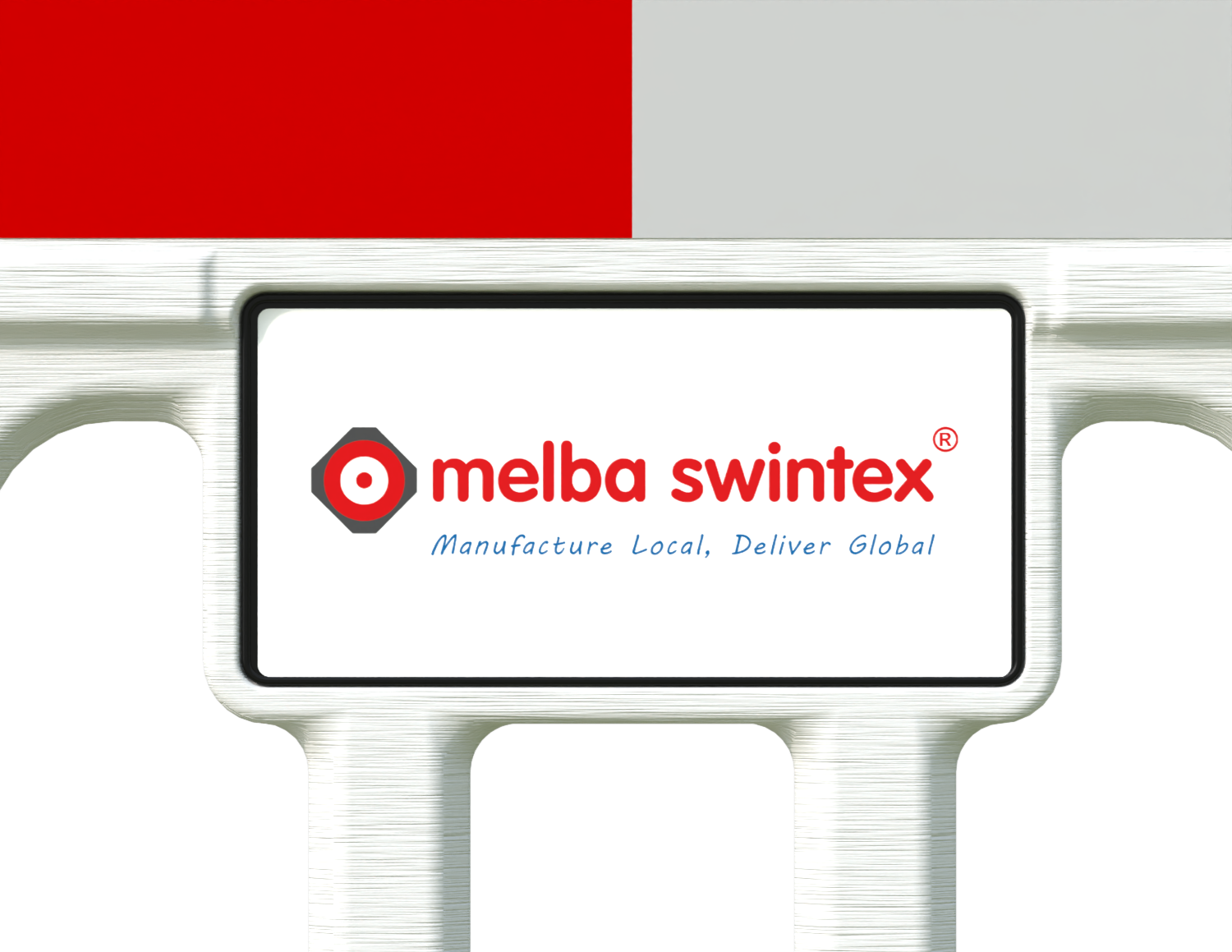

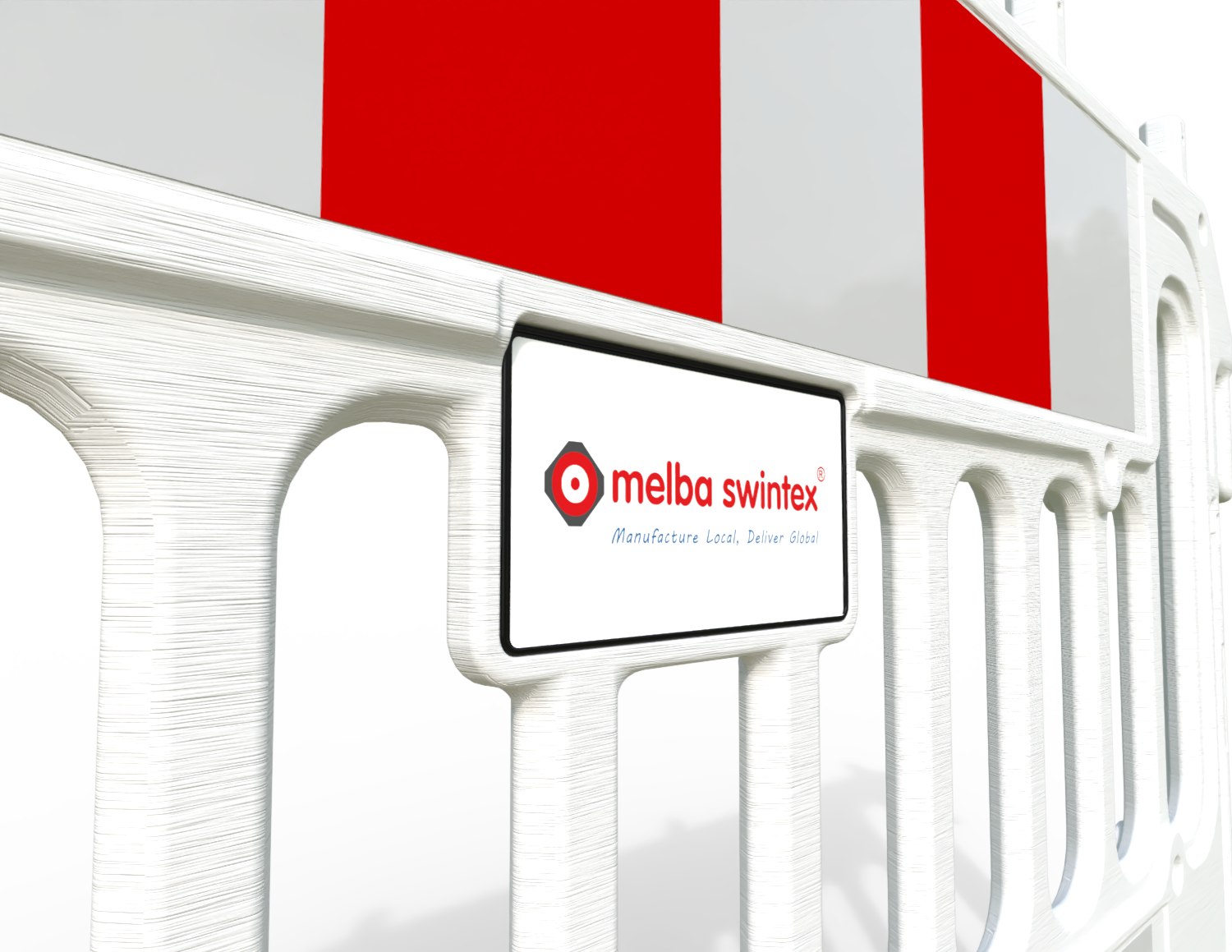

High resolution fixed branding plate.

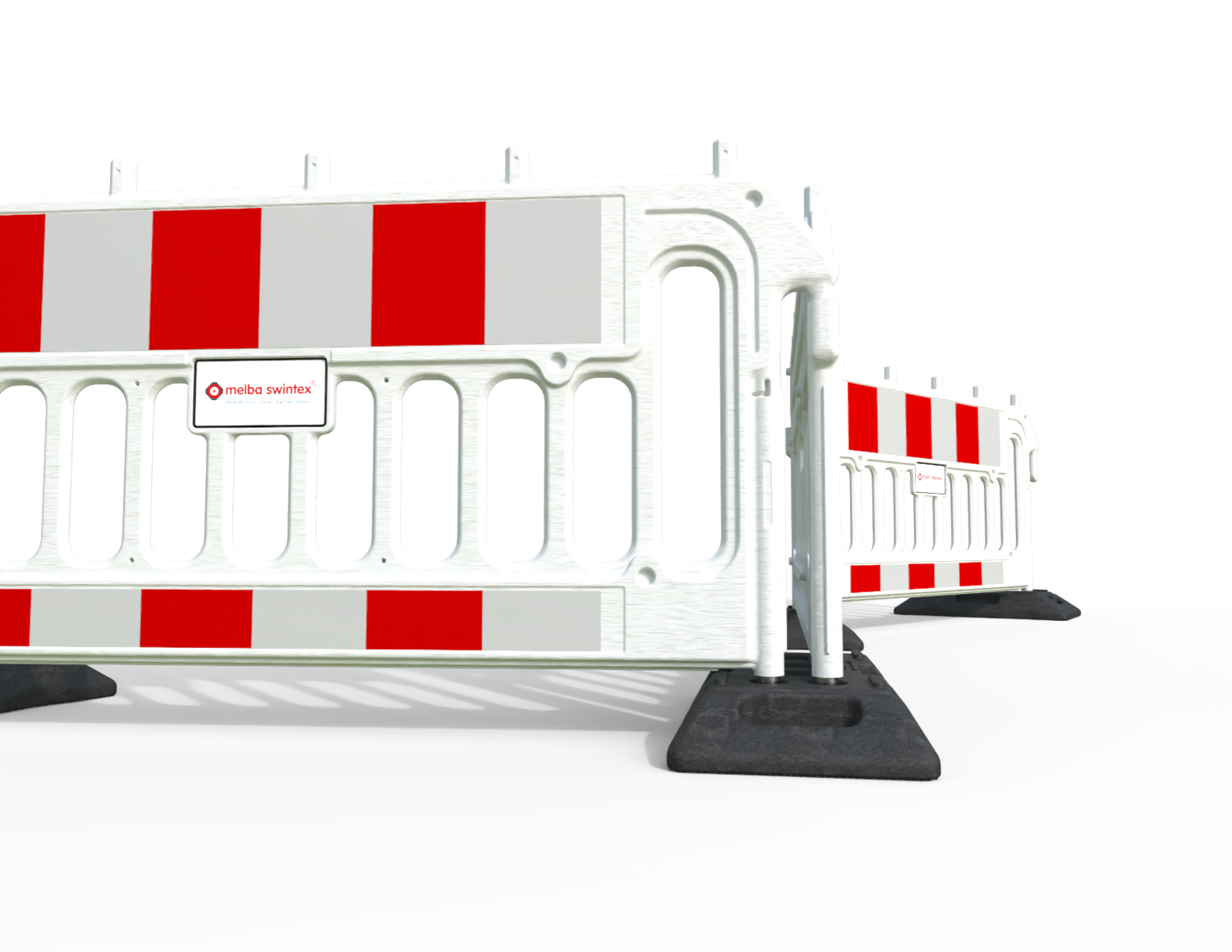

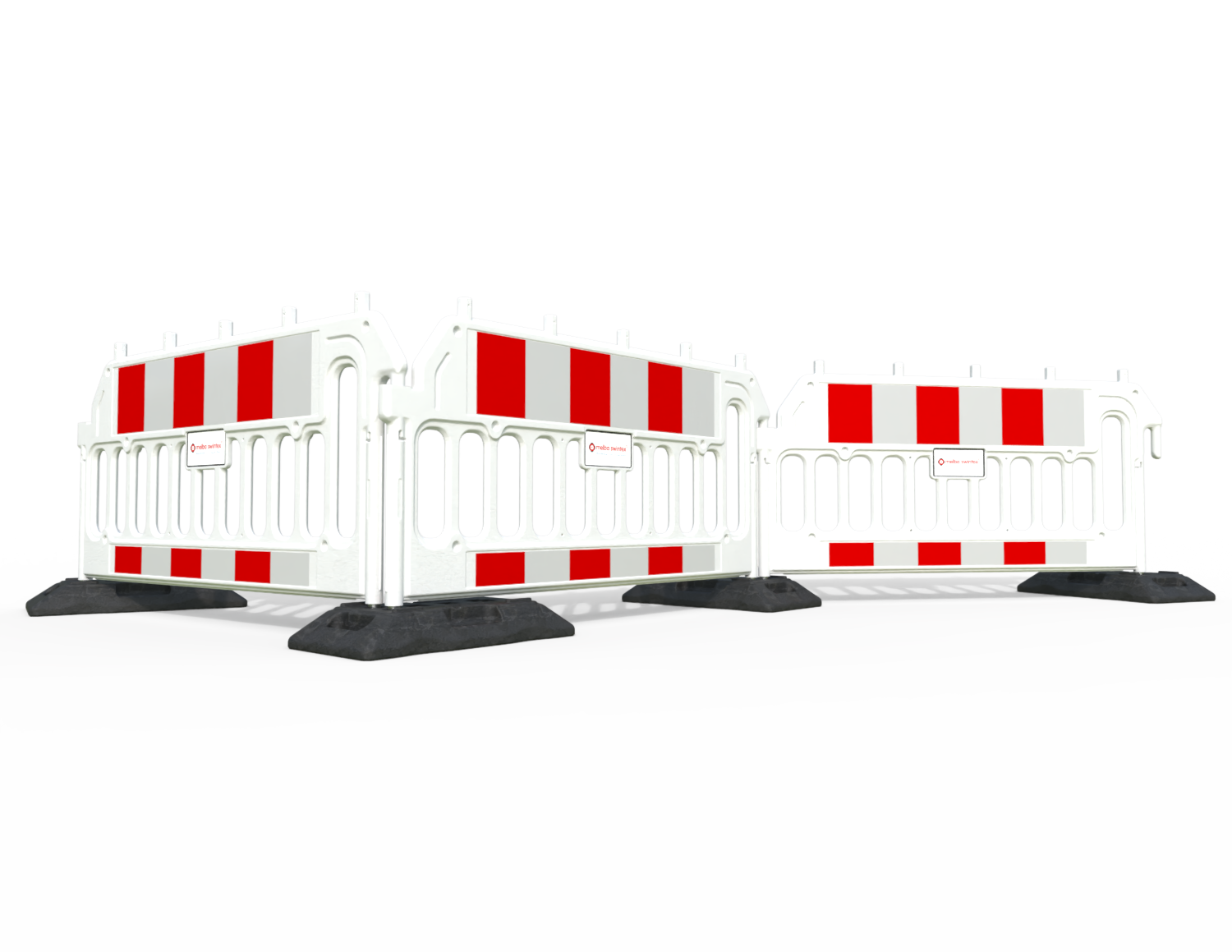

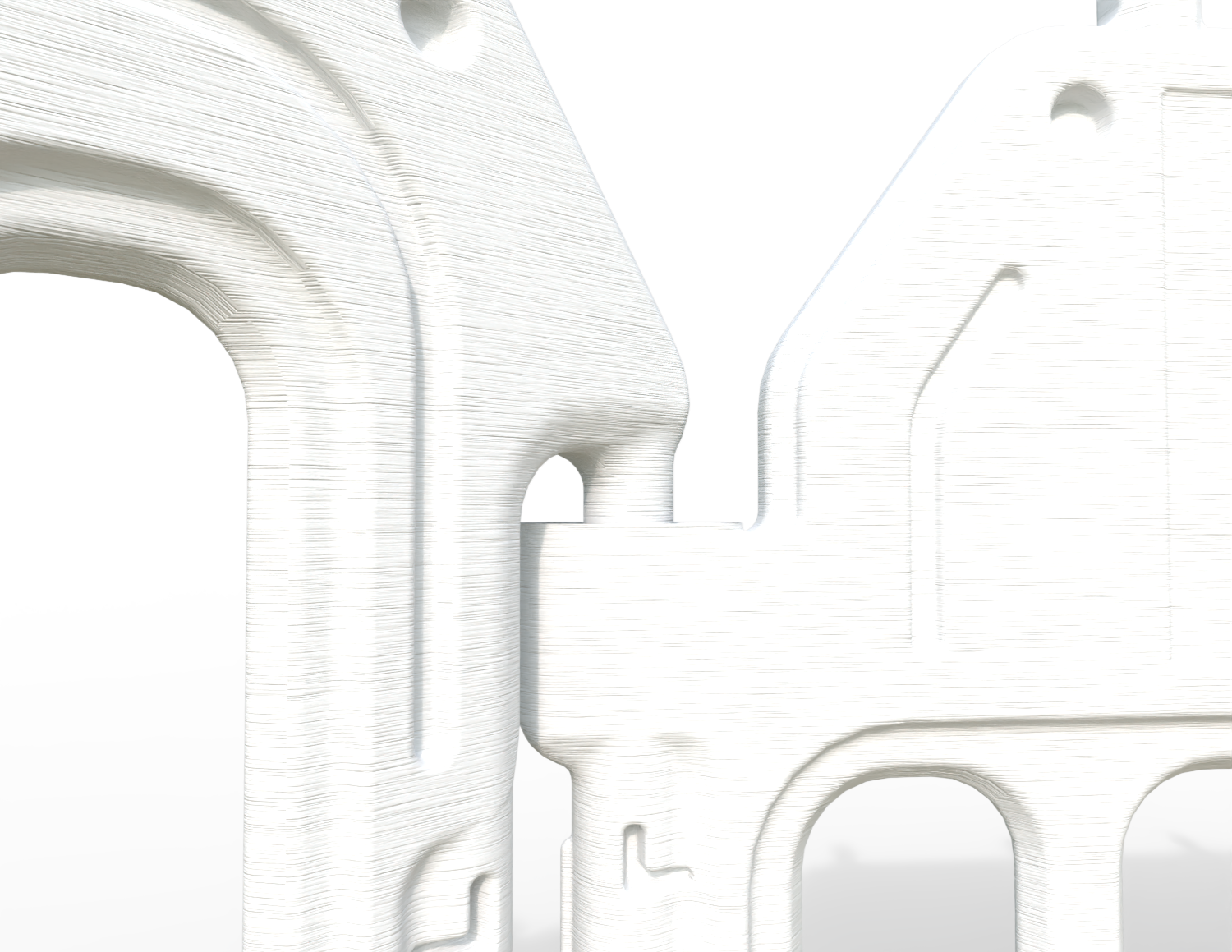

Hook & eye connection.

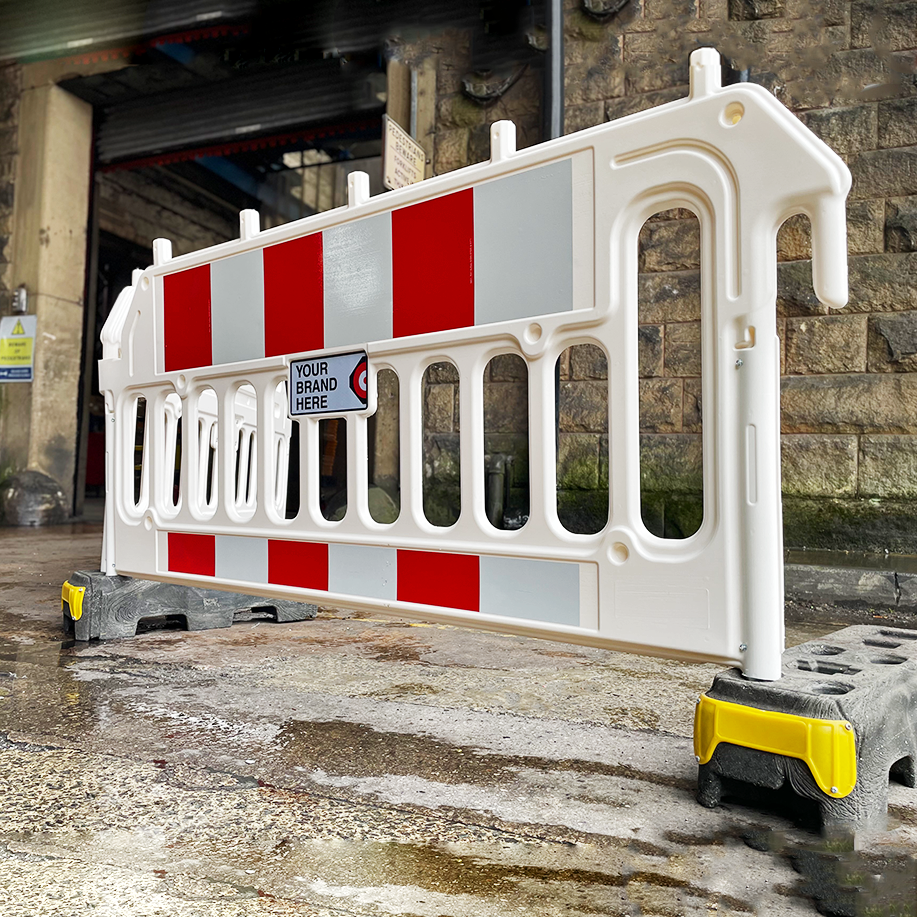

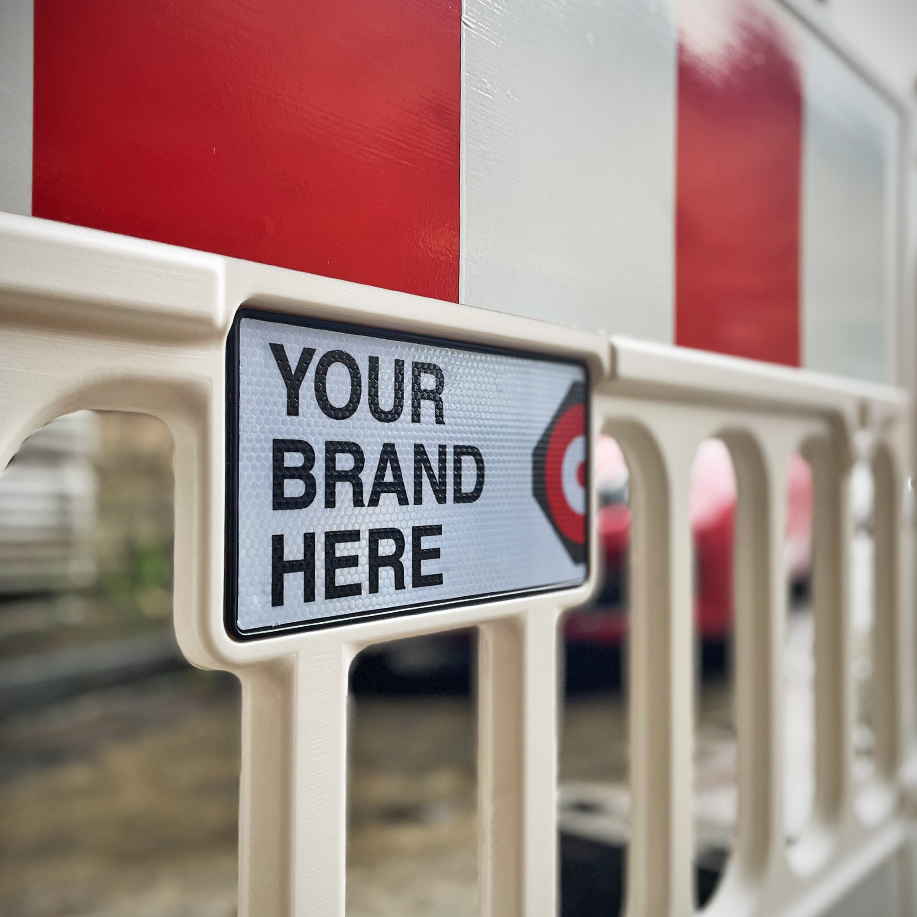

Customer identification can be embossed.
Secure stacking for ease of transport.

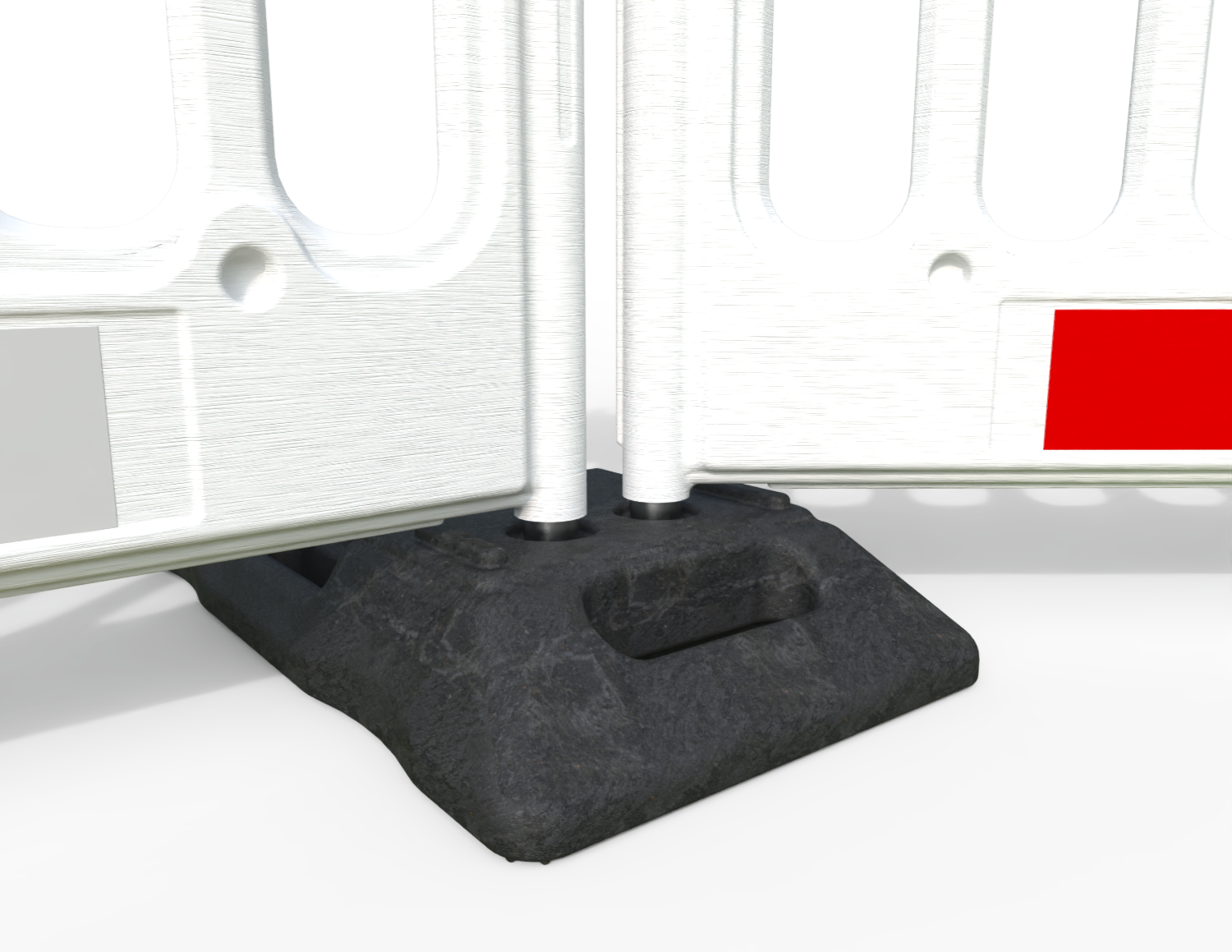

Compatible with the heavy duty base range.
Manufactured from 100% recyclable materials.
Deeper reflective panels for high visibility.
Incredible strength & durability.
Fantastic wind resistance.
Transport
Pallet Quantity:
40
Pallet Size (mm):
2050 x 1200 x 2150
Pallet Spaces:
2
Pallet Weight (kg):
300
Standards
Conforms to requirements of BSEN8442
Reflectivity requirements of BSEN12899-1
The Red Book 2013
Traffic Signs Regulations & General Directions
TL Absperschranken 97
TL-Aufstellvorrichtungen 97
Conforms to requirements of ZTV-SA
Spec Sheet:
Wind Resistance
All temporary traffic barriers must be able to withstand three different classes of wind speeds with the use of a ballast. The standard BS 8442:2022 states the three classes as the following:Class A: 26.3 m/s (58 mph)
Class B: 17.6 m/s (39 mph)
Class C: 8.7 m/s (19 mph)
Dimensional data for the Centurion was processed implementing the formula found within BS EN 8442:2015 to determine the estimate ballast weight required for each wind Class.
Below are the results and guides as to the recommended ballast weight for each Wind Class:
15KG FOOTPLATE Base
Barrier will overturn at approximately 20.0 m/s
Recommended Ballast Weight:
Class C: 0 kg | Class B: 0 kg | Class A: 20 kg
Barrier will overturn at approximately 20.0 m/s
Recommended Ballast Weight:
Class C: 0 kg | Class B: 0 kg | Class A: 20 kg

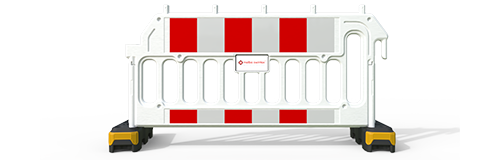

18KG MULTIFIT Base
Barrier will overturn at approximately 21.6 m/s
Recommended Ballast Weight:
Class C: 0 kg | Class B: 0 kg | Class A: 15 kg
Barrier will overturn at approximately 21.6 m/s
Recommended Ballast Weight:
Class C: 0 kg | Class B: 0 kg | Class A: 15 kg

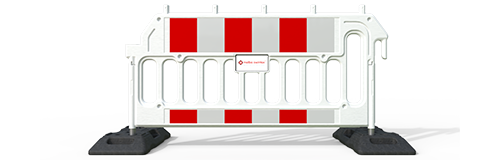

25KG FOOTPLATE Base
Barrier will overturn at approximately 25.1 m/s
Recommended Ballast Weight:
Class C: 0 kg | Class B: 0 kg | Class A: 5 kg
Barrier will overturn at approximately 25.1 m/s
Recommended Ballast Weight:
Class C: 0 kg | Class B: 0 kg | Class A: 5 kg

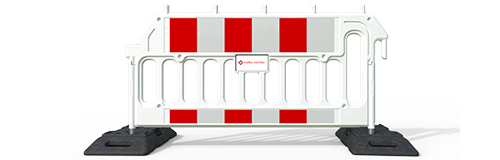

28KG FOOTPLATE Base
Barrier will overturn at approximately 27.0 m/s
Recommended Ballast Weight:
Class C: 0 kg | Class B: 0 kg | Class A: 0 kg
Barrier will overturn at approximately 27.0 m/s
Recommended Ballast Weight:
Class C: 0 kg | Class B: 0 kg | Class A: 0 kg
